World’s First Altimeter with Flight Duration Option
Besides a latest technology barometer capsule, GliderKeeper features an accelerometer. Flight time is started upon throttle movement during launch, the same event as for motor timing in F5J rules.
Landing is captured by measuring the fuselage vibration on the model´s touch down.

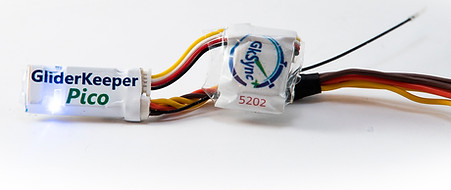

No doubt GliderKeeper Pico is the smallest AMRT available in the market.
GliderKeeper Pico has been already
homologated by FAI those FW starting with a 3.xx will be specific for GliderKeeper Pico.
You can use now GliderKeeper Pico in any F5J offcial competition and soon more competition types' Fw will be published.
FAI Approved Firmware for F5J
Pico Display
Small Expansion Port aplications
Use Pico Display
Both, Display and GKSync
Pico Display comes also with an extension lead cable and a connector hub.
Very comfortable in case you want to connect Pico after landing to save wieght and space in your cabin
​
Display will come alive after connecting any time GliderKeeper Pico changes its status and specifically each 1,5 seconds in wifi mode.
An image is worth 1000 words
Place your GlideKeeper Pico almost anywhere in your Fuse
Ultima Fuselage
Explorer 4 Fuselage
Check your Flight results in display or your Mobile terminal
GliderKeeper microcontroller features a native Wi-Fi capability, after landing you can choose to perform another F5J flight or enter in Wi-Fi mode to see your flight results.
​
Who wants to carry on a special display?.
See your Flight´s plot just after landing or export your data for later review
Change your device configuration at the field with no removals
Pico Programmer: USB compatible
Many users will enjoy this optional new feature.
Pico Programmer includes the adapter cable harness. Customer´s supply a type C USB cable.
It is necessary to use our Desktop App in its Windows version that includes Pico progammer´s tab management.
Specifications:
Dimensions: 28,7x13x5,6 mm
Weight (including cable): 6,5 gr (of which cable is 4gr)
Power Supply: (min.) 4,5 V / (Max.) 17 V/ (Recomd. Wi-Fi AP) < 5,0V
Current consumption: Flight Mode <50 mA / Wi-Fi STA 120mA / Wi-Fi AP 170mA
Barometric Pressure Sensor: 300-1250 hPa, 8 Pa. Rel accuracy (0,6m)
Accelerometer Sensor: 12 bit/ + 8g range.
Memory storage: 255 flights or 5 Flight hours (circular buffer, 255 total flights max)
Wi-Fi: 802.11 b/g/n WPA/2
No more papers, less people involved in a competition
In these days where social interchanges are not very convenient a totally paperless contest can be handled with GliderKeeper and GliderTimer.
GliderKeeper will leave an imprint with its serial number and exact date and time of the flight to maintain data integrity structure. No need for interchanging papers, pencils or Chronometers.
